How do I create lifting equipment (resources)?
- Before you start
- The Can create loading aids permission; the loading zone to assign should already exist.
- Where to find it
- Settings → Logistics → Resources → New resource
- How to check the result
- The resource is created with its loading zone, dimensions, reach and business hours.
On this page
Lifting equipment covers the machines used for unloading on your construction site – cranes, forklifts, lifting platforms or telehandlers. Once you have set it up in Bausicht, subcontractors can book the right lifting equipment together with their delivery. That prevents double bookings.
Quick answer
| Step | Description |
|---|---|
| 1 | Open Settings → Logistics → Lifting equipment |
| 2 | Click New lifting equipment |
| 3 | Enter Name, Loading zone as well as dimensions and reach |
| 4 | Click Create lifting equipment |
Requirements
You need a role on the construction site with the permission Can create lifting equipment. The loading zones should already exist as well – all lifting equipment is assigned to a loading zone.
Step 1: Open the “Lifting equipment” section
Open Settings → Logistics and select the Lifting equipment tab at the top.

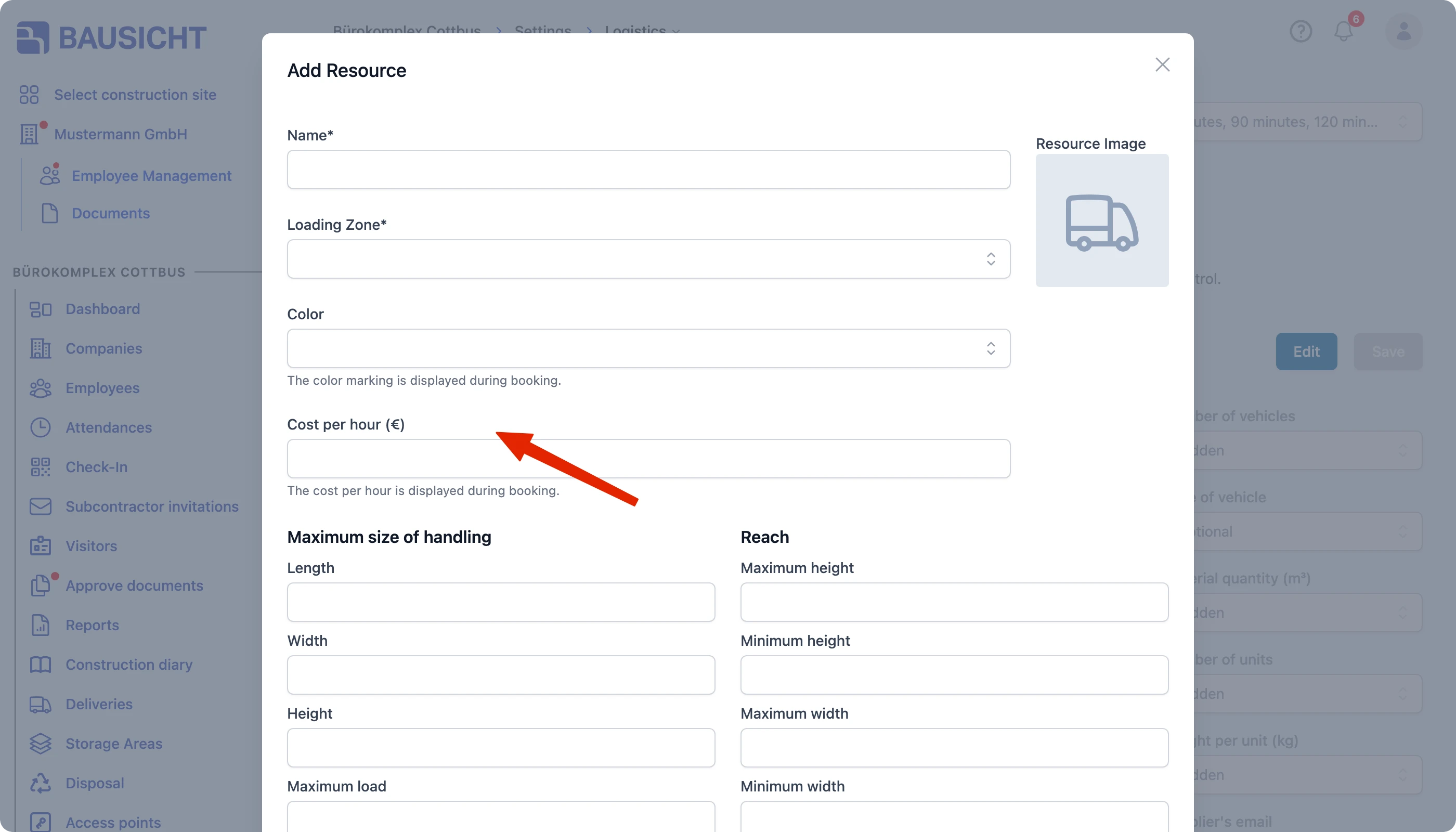

Step 2: Enter the basic data
| Field | Meaning |
|---|---|
| Name (required) | Label, for example „Crane 1“ |
| Loading zone (required) | Zone where the lifting equipment is used |
| Colour | Colour marking in the calendar and the overview |
| Cost per hour (€) | Optional hourly rate for using it |
| Image | Photo of the lifting equipment for quick recognition |
Step 3: Enter dimensions and reach

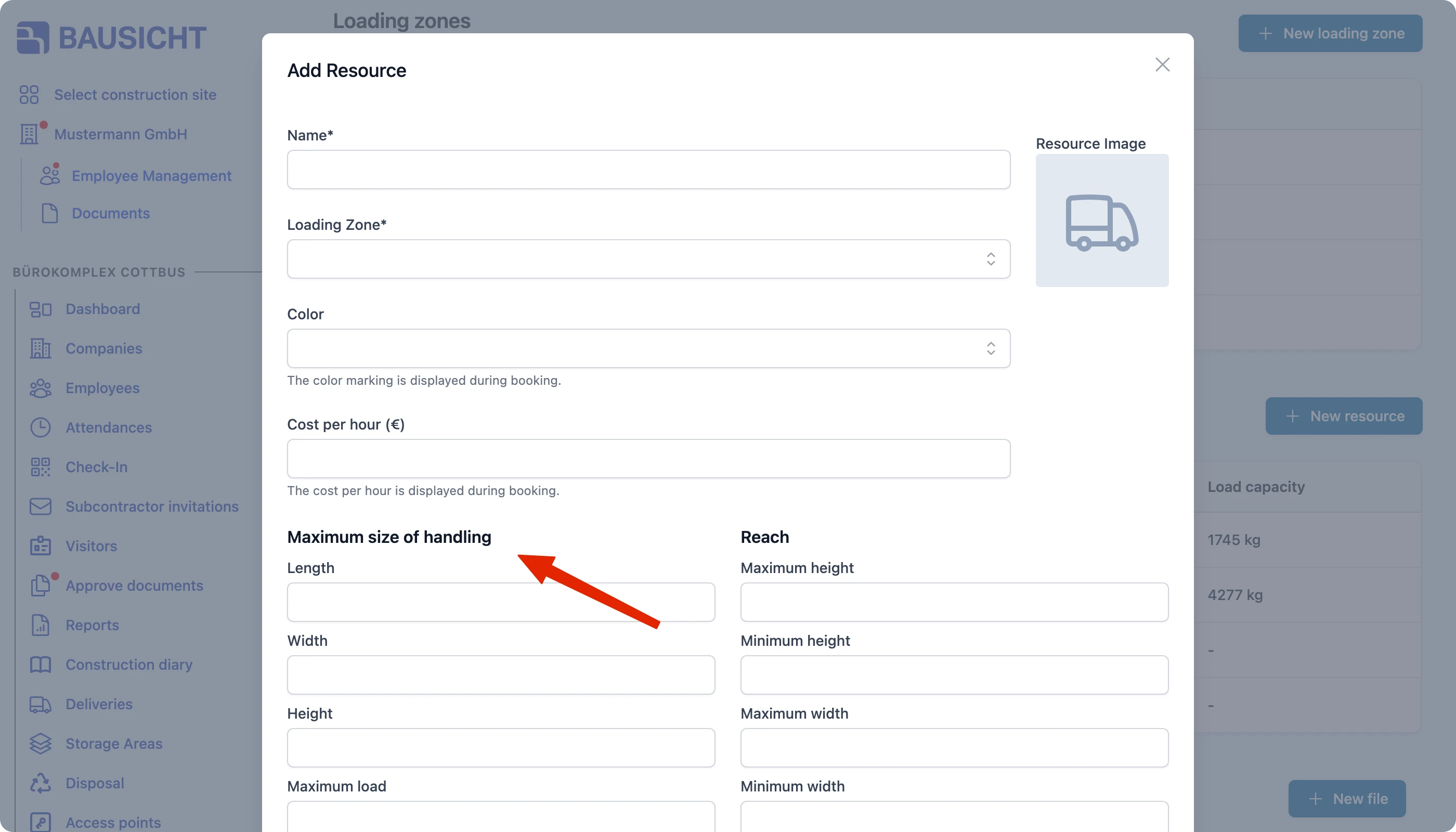

The Maximum load dimensions section describes what the lifting equipment can move: Length, Width, Height and Maximum load.
The Reach section describes where it can do so: Maximum height, Minimum height, Maximum width and Minimum width.
Step 4: Set the opening hours and save
Use Edit opening hours to define when the lifting equipment can be booked. Finally click Create lifting equipment.
Tip: Well-maintained dimensions and reach are more than documentation – during booking they immediately show whether the lifting equipment is suitable for the planned delivery at all.
Need further help?
If you need further assistance creating lifting equipment, our support team is happy to help.
